Find Decals for the Yamaha R1 1998 Model

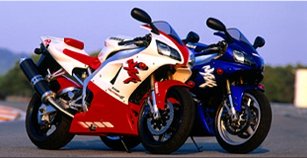

The Yamaha YZF-R1 1998 Model Specs

Color Options
- Team Yamaha Blue/White; Red/White
Type: Liquid Cooled, in-line 4-stroke 4cyl
Valve arrangement: 5 valves/cyl
Displacement: 998cc
Bore x Stroke: 74.0 x 58.0 mm
Compression ratio: 11.8:1
Carburation: 4, 40mm Mikuni CV downdraft BDSR40 with TPS
Ignition Digital:Digital TCI
Type: 6-speed w/multi-plate clutch
Gear Ratio - 1st Gear: 39/15 (2.600)
Gear Ratio - 2nd Gear: 35/19 (1.842)
Gear Ratio - 3rd Gear: 30/20 (1.500)
Gear Ratio - 4th Gear: 28/21 (1.333)
Gear Ratio - 5th Gear: 30/25 (1.200)
Gear Ratio - 6th Gear: 29/26 (1.115)
Final Drive: 43/16 #530 chain 114 link
Front Suspension: 41mm inverted telescopic fork w/adj. preload, compression and rebound damping; 5.3" travel (135mm)
Rear Suspension: Single shock w/piggyback reservoir and adjustable preload, compression and rebound damping; 5.1" travel (130mm)
Front Brake: Dual 298mm floating discs w/4-piston calipers
Rear Brake: 245mm disc w/2-piston caliper
Front Wheel: 3.50 x 17 in., cast aluminum
Rear Wheel: 6.00 x 17in., cast aluminum
Front Tyre: 120/70-ZR17
Rear Tyre: 190/50-ZR17
Height: 43.1" (1,095mm)
Length: 80.1" (2,035mm)
Width: 27.4" (695mm)
Rake/Trail: 24.0/3.6 in.(91mm)
Wheelbase: 54.9 in (1394mm)
Seat Height: 32.0 in. (813mm)
Fuel Capacity: 4.7 gallons (18 liters)
Oil Capacity w/filter replacement: 3.1 Qt. (2.9 l)
Weight: 437 lbs (198kg) wet, 390 lb (177kg) dry
Instruments: Digital speedometer, tachometer, clock, temp. guage, lights for neutral, high beam, turn signals, and low fuel
Fuel Consumption: 41 mpg average
Horsepower: 128.2 @ 10,000 rpm
Torque: 70.8 ft.-lbs.@ 7750 rpm
1/4 Mile: 10.22 @140.15
Top Speed: 165.8 mph
